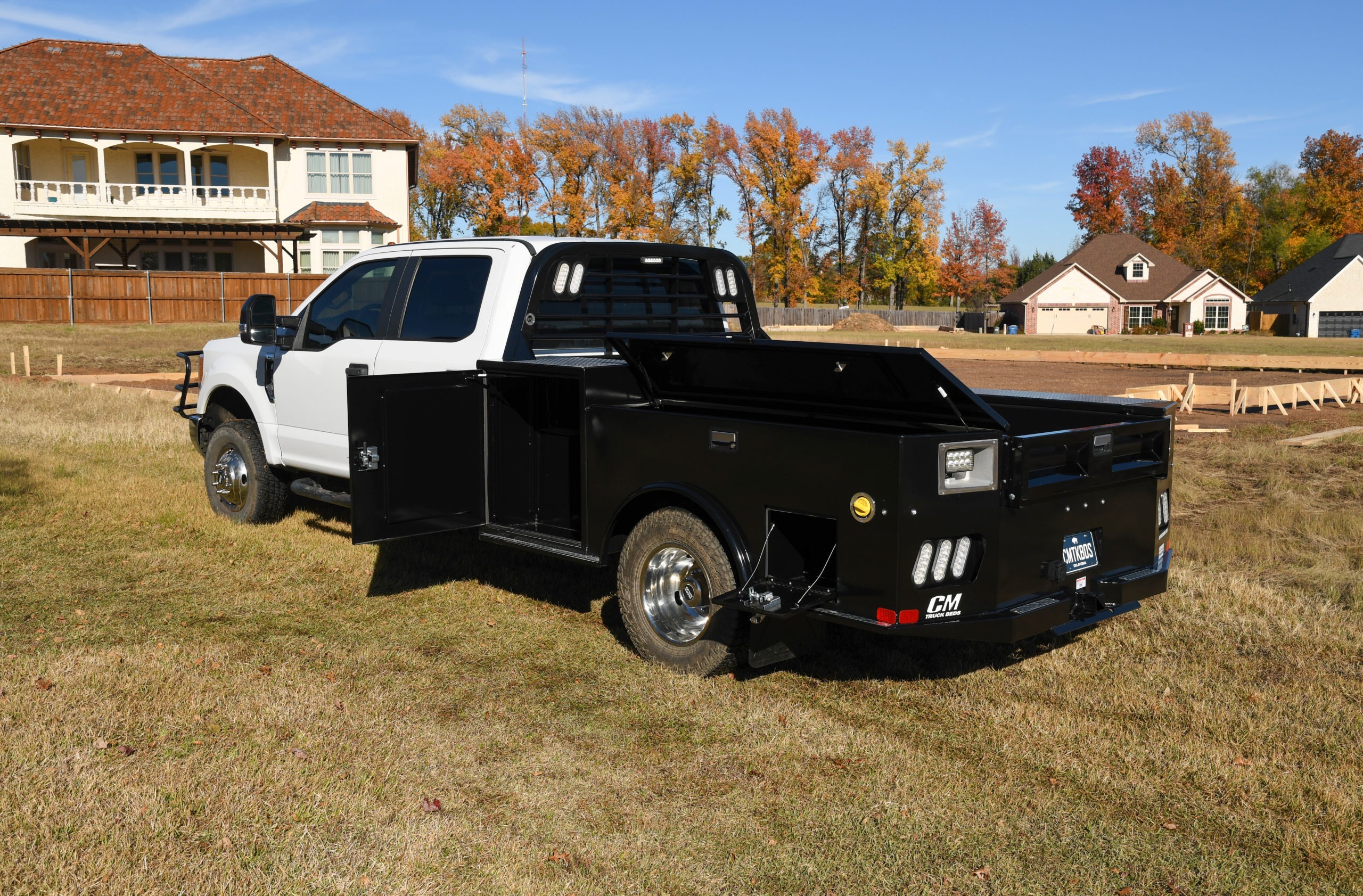

TM/TMX Steel Tradesmen Body

Build Your Own Truck Bed & 360° Tool

Ford Logo

Ford Logo

Ford Logo

Click on the truck brand to see an interactive version of this model.

Specs & Features

Lengths 84", 8'6", 9'4", 11'4"
Headache Rack Steel Tube
Deck 1/8" Treadplate
Frame Rails 4" Structural Channel Steel
Crossmembers 3" x 3/16" Channel
Rear Skirt Solid One Piece with Rear Step
GN Hitch 30K B&W Hitch with Welded Ball
BP Hitch 24K B&W 2 ½” receiver hitch with receiver tube
Side Rails N/A
Fuel Fill Angled
12V Trailer Plug 12V Round 7 Pin in GN Box, Round 7 Pin/4 Way Flat on Rear
Rear Lighting LED High Intensity
Light Box (Rear Skirt) Steel
Marker Lighting Bullet DOT Approved LED
Toolbox Utility Box in Front, Top-Open 3/4 Length Shovel Box; Low-Profile Chain Box in rear
Toolbox Handle Chrome T Handle Compression
Toolboxes (Special Sizes) (11'4" Models Only) 54" Recessed Front Toolbox with Suicide Doors, No Chain Box
Fenders Steel Radius
Sidesteps In front of and behind fender
Tiedowns (4) 18" Airline Track Tiedowns, (4) Attachment Rings
Download Model Overview
VIEW OUTFITTER GUIDE

Standard Equipment Information

Steel tubing headache rack with “easy view” window grill

Designed with the best and strongest materials to keep you safe, our “easy view” window grill headache rack not only protects but provides ample room to see when backing up your vehicle.

Super-durable powder-coat finish

CM Truck Beds coats our products with powder, rather than paint. We cover every crevice and corner, providing long-lasting protection and a superior finish and shine!

1/8″ steel treadplate deck

This strong and long-lasting deck is designed for heavy-duty work, withstanding the rigorous work conditions that our bodies are placed under. Compare to other bodies on the market, which use 11-gauge and 13-gauge floors.

30,000 lb.-rated B&W gooseneck hitch with 7-way electrical plug

This is a best-in-class, independently tested gooseneck hitch that handles even your toughest hauls. It also contains a 7-way electrical plug to give you ample choices for your power-driven needs.

3/4 length shovel box with top access flip-up door

Allows you to store your tools and equipment out of the elements, and easily access them on the job site.

LED cargo light with toggle switch

Provides lighting to be able to see your tools and equipment on the deck.

Drop-down rear tailgate with center handle

Our heavy-duty rear tailgate has a secure seal that holds tight in transit, yet opens smoothly and stands up to years of hard use.

Modular sealed wiring harness

Our modular sealed wiring harnesses are resistant to corrosion, deterioration and pulling apart, meaning they can withstand the harshest conditions.

7-way round and 5-way flat electrical plug standard on rear tailboard

This standard feature provides quality results and allows you to hook onto any trailer.





24,000 lb.-rated B&W bumper pull hitch

CM’s independently rated bumper pull hitch gives you best-in-class towing capacity, which is integrated into the entire frame.

3″ Steel roll-formed 3/16″ channel crossmembers

These are the toughest and most durable work truck subframes.

4″ structural steel channel frame rails

Because we don’t use roll-formed runners, our structural 4″ channel frame rails are stronger and more durable than any on the market. They also prevent any rusting from the interior of the tube.

2 – LED recessed tail, brake and backup lights mounted in headache rack

CM’s lights are brighter and use less power than conventional incandescent lights, so your stops, turns, and tag lights will be easily seen and recognized.

6 lockable toolboxes (3 on each side) featuring T-handle compression latches

Our recessed tool box doors provide maximum safety in our large boxes to prevent weathering of your tools and equipment. For security, the dual latches lock with a key and padlock loop when desired.

Aluminum treadplate trim package

An added element of head-turning shine.

Full length side skirt with stainless fenders and aluminum treadplate trim

A one-piece, non-exposed seam skirt that provides less corrosion and oxidation.

Angled fuel fill

Provides a shinier and better-looking feature to your work truck, as well as a no-corrosion zone for all your in-and-out hauls.

Exclusive Feature:

2 – MegaBox toolboxes (one per side)

Store more with CM’s unique MegaBox toolboxes. At 54″ wide, with easy-access suicide doors, our MegaBox toolboxes hold all your essentials — and more! This feature is available only on 11’4″ models.

Available Options

3/16" Deck

CM’s best-in-class 3/16” deck is a heavier duty deck that allows users to haul more weight. Providing higher weight capacity, this available option has the best quality results for your serious hauls.

Bail Spike

Bail Spike

Our CM Bail Spike allows users to haul bales of hay. This CM Truck Bed option is hydraulically operated and makes hauling hay simpler and quicker.

30,000lb. B&W Turnover Ball

30,000lb B&W Turnover Ball

The CM Truck Bed 30,000 lb. B&W Turnover Ball option gives users a heavier weight rating and flexibility to haul 5th wheel. This option also allows users to switch back and forth from gooseneck to 5th wheel positions.

CM Truck Beds 5th Wheel Companion

B&W 5th Wheel Companion

This option allows users to haul 5th wheel. The B&W 5th Wheel Companion also allows users to switch back and forth from gooseneck to 5th wheel.

CM Truck Beds Stainless Steel Fenders

Stainless Fenders

CM Truck Beds stainless fenders are anti-corrosion and better looking than other competitors in the market. When shopping for a truck bed that will outlast and stay attractive the longest, why not turn to CM?

Color Primer Only

Color Primer Only

CM’s color primer option is a great way to keep your hauler body in good shape and in style. Our primer will prevent rust and corrosion developing on your truck body and give customers a peace of mind to travel off-road or on untreated roads.

Work Light

Work Lights

Our CM Truck Beds work lights provide users with a safer and more productive work space. When your oilfield or construction job runs long into the night, trust in CM Truck Beds.

CTech Toolboxes

We are now offering this cutting-edge storage solution for work truck users seeking maximum durability and functionality. The cabinets feature heavy-duty ball-bearing drawer sliders built to withstand years of heavy use and exposure to the elements.

American Eagle Boxes

We are now offering this cutting-edge storage solution for work truck users seeking maximum durability and functionality. The cabinets feature heavy-duty ball-bearing drawer sliders built to withstand years of heavy use and exposure to the elements.
